Products
Everything that goes into a controlled environment
Four product families, all manufactured in our own facilities. Filters and equipment are made in standard and customised sizes, so a non-standard dimension is a manufacturing instruction rather than a redesign.
Cleanroom Turnkey Projects
MAP Filters designs and builds complete cleanrooms rather than only supplying parts for them. Panels, doors, air handling units, ducting, terminal boxes and the filters inside them are manufactured in our own facilities, which means one party is accountable for how the finished room performs.
About turnkey projects
Air Handling Units (AHU)The plant that conditions and moves air through a controlled environment, filtered to the class the room has to hold.

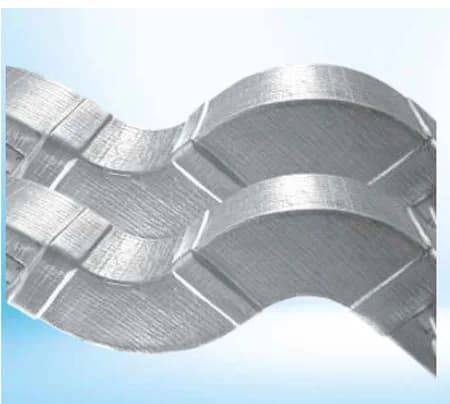

HVAC DuctingDistribution ductwork designed to minimise air leakage and hold temperature evenly across a space.
HVAC Terminal BoxLocalised control of airflow and temperature for an individual zone, rather than for a whole floor.
Electric Control Panel for AHUThe DDC panel that reads temperature, humidity and CO2 and drives the AHU accordingly.

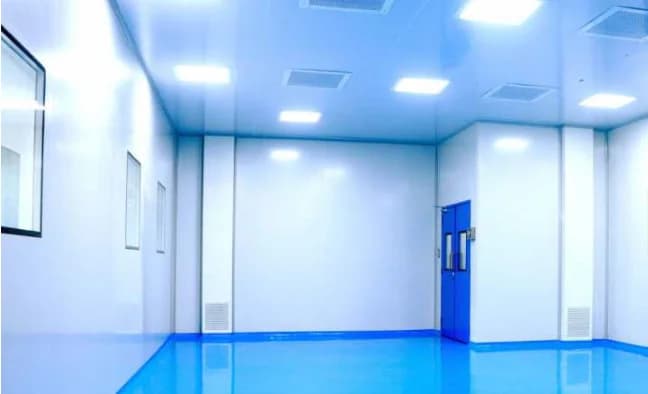

Clean Room PUF PartitionModular wall panels that form the envelope of the room, engineered for minimal air leakage.
Clean Room DoorSealed doors that hold the pressure regime while staying serviceable in high traffic areas.
Epoxy Flooring and CovingSeamless flooring with coved wall junctions, so there is no square corner for residue to collect in.
Cleanroom Equipment
A cleanroom is only as clean as the equipment through which people and materials enter it. We manufacture that equipment in stainless steel to ISO Class 5 airflow specifications, using HEPA filters built on the same premises.
About cleanroom equipment
Air ShowerA high velocity HEPA-filtered vestibule that strips particulate off personnel before they enter the clean area.
Dispensing BoothA downflow enclosure for weighing and dispensing powders without releasing them into the room.

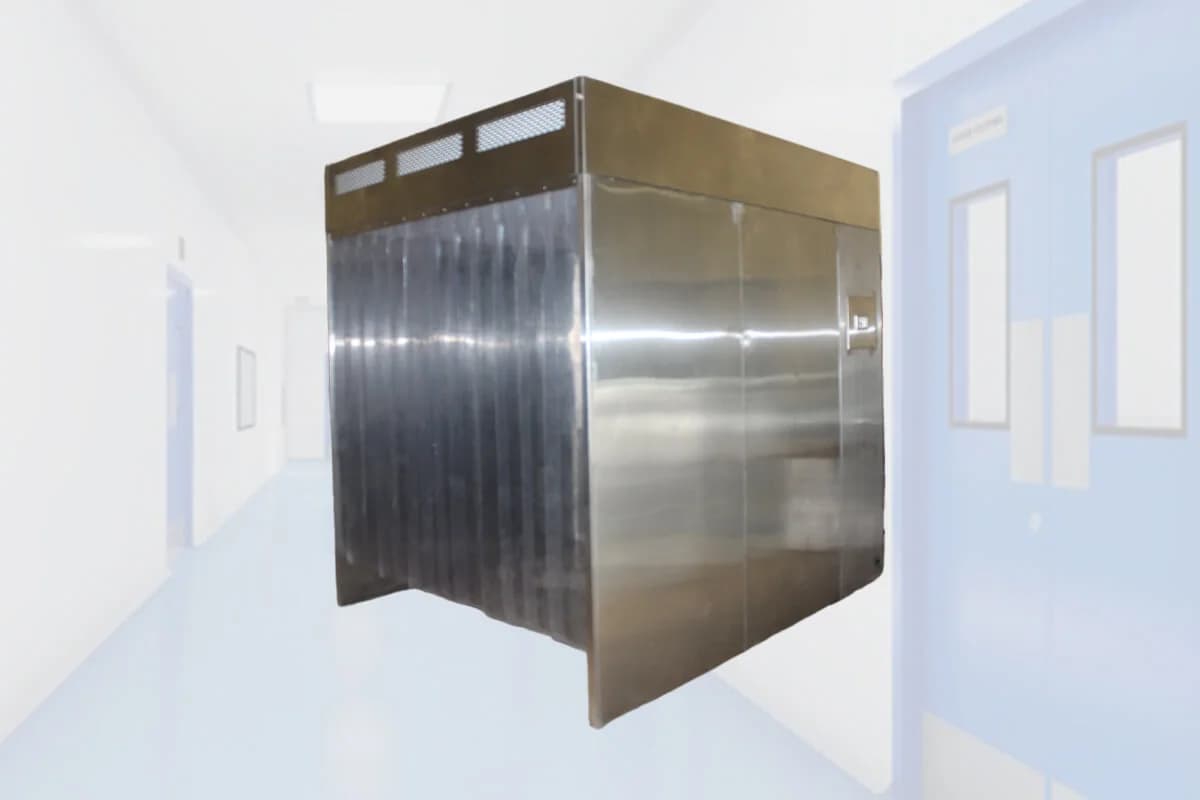

Sampling BoothA containment booth for taking samples of powders and granules without exposing the operator.- Horizontal Laminar Air Flow UnitA work station with unidirectional horizontal airflow, for product protection at ISO Class 5.

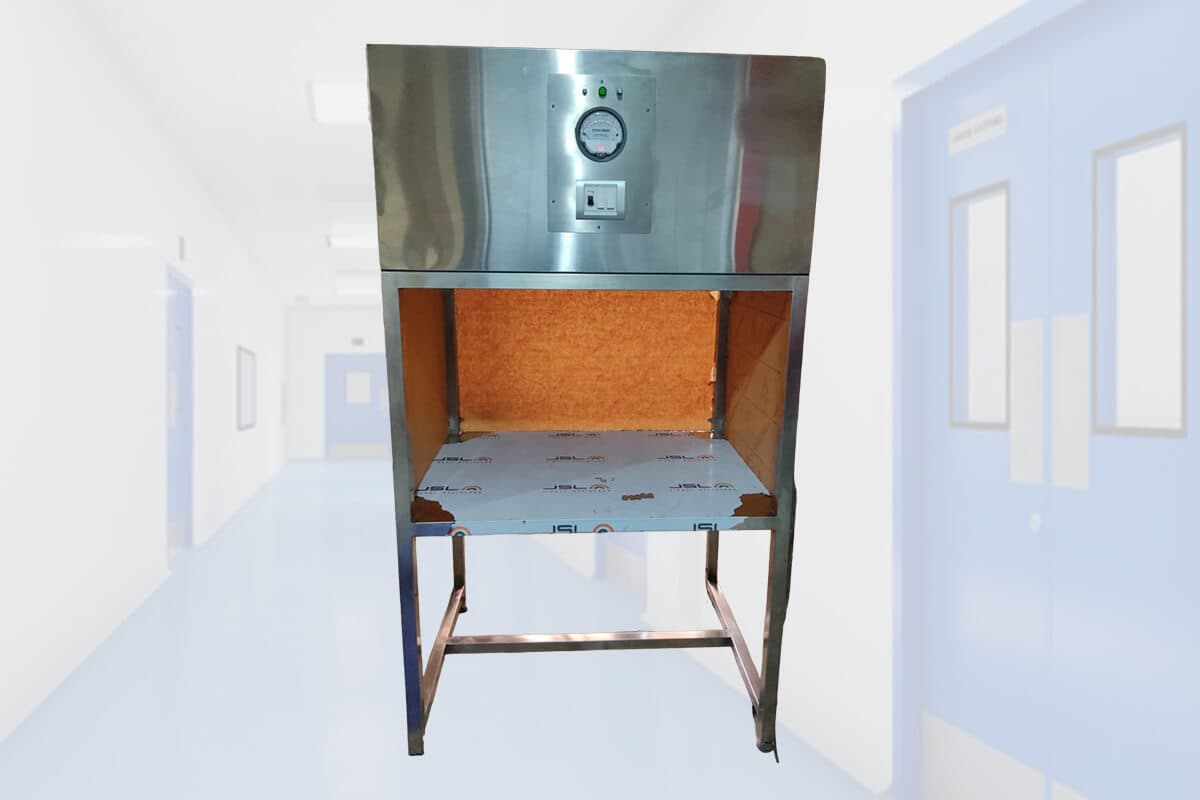

Vertical Laminar Air Flow UnitDownward unidirectional airflow, for work where the operator should not sit downstream of the product.
Mobile Trolley Laminar Air FlowA laminar flow unit on castors, for clean work at a location that changes.

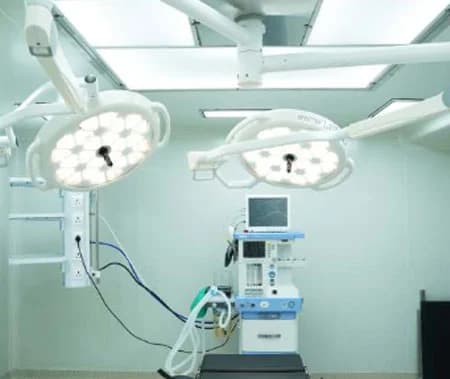

Laminar Air Flow for Operation TheatresA sterile field over the operating table, held by unidirectional airflow.

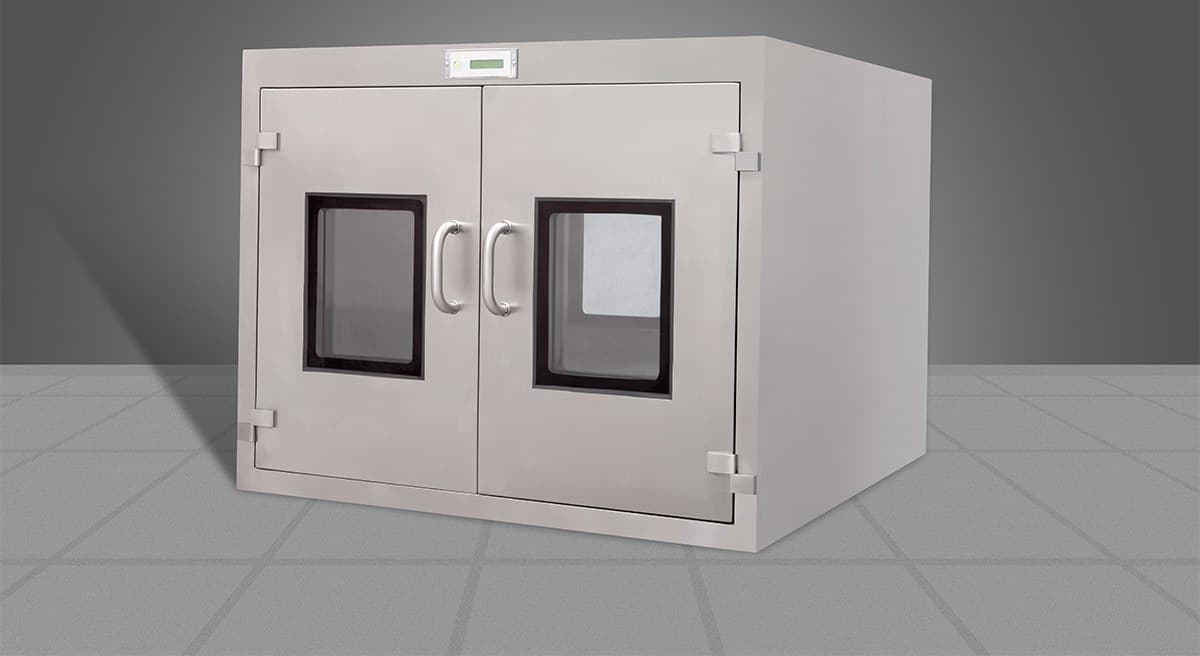

Pass BoxAn interlocked hatch for moving material between areas of different cleanliness without walking it through.

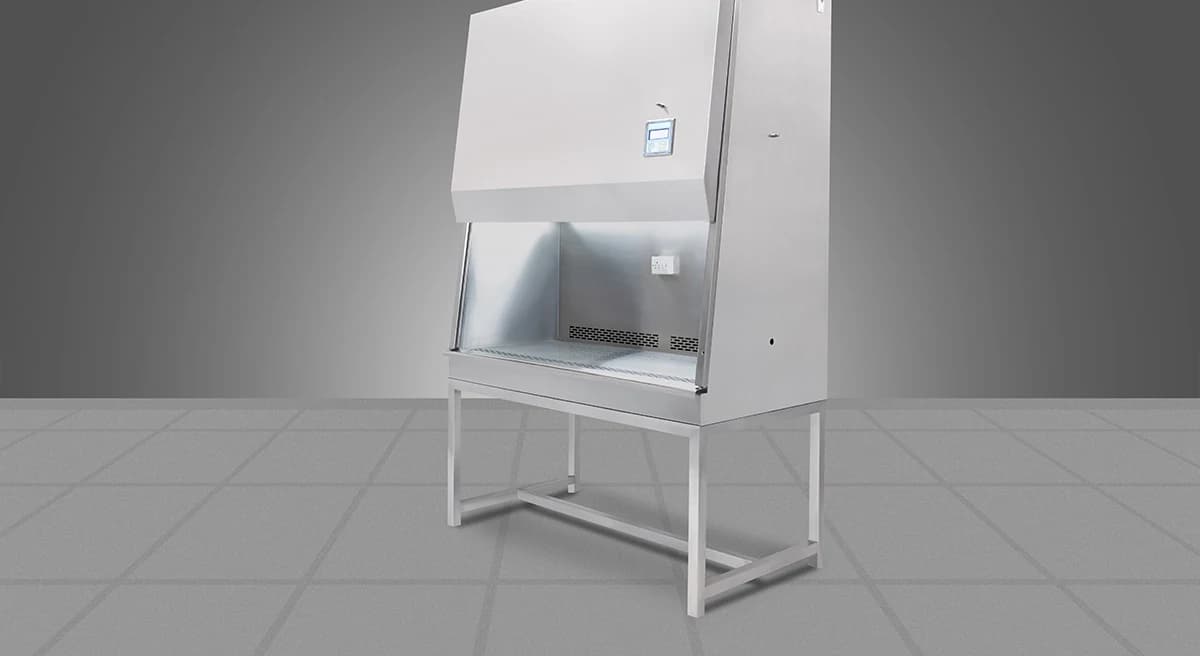

Biosafety CabinetClass II A2 and B2 cabinets, protecting the operator, the product and the environment at once.

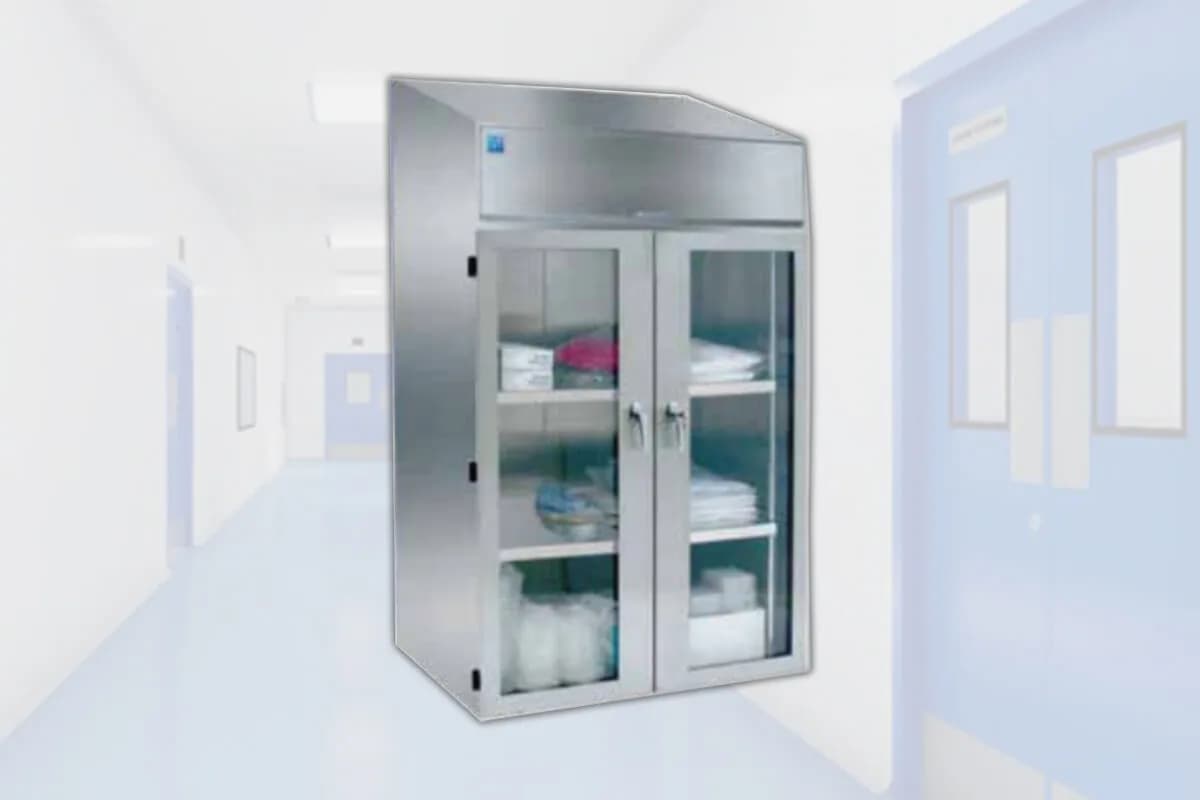

Garment Storage CabinetStatic and dynamic cabinets that keep gowning garments clean between uses.
HVAC Air Filters
Filtration works as a sequence, not a single product. Coarse particulate is removed first so that the expensive final filter is not consumed doing work a washable pre filter could have done. We manufacture every stage of that sequence in standard and custom sizes.
About air filters

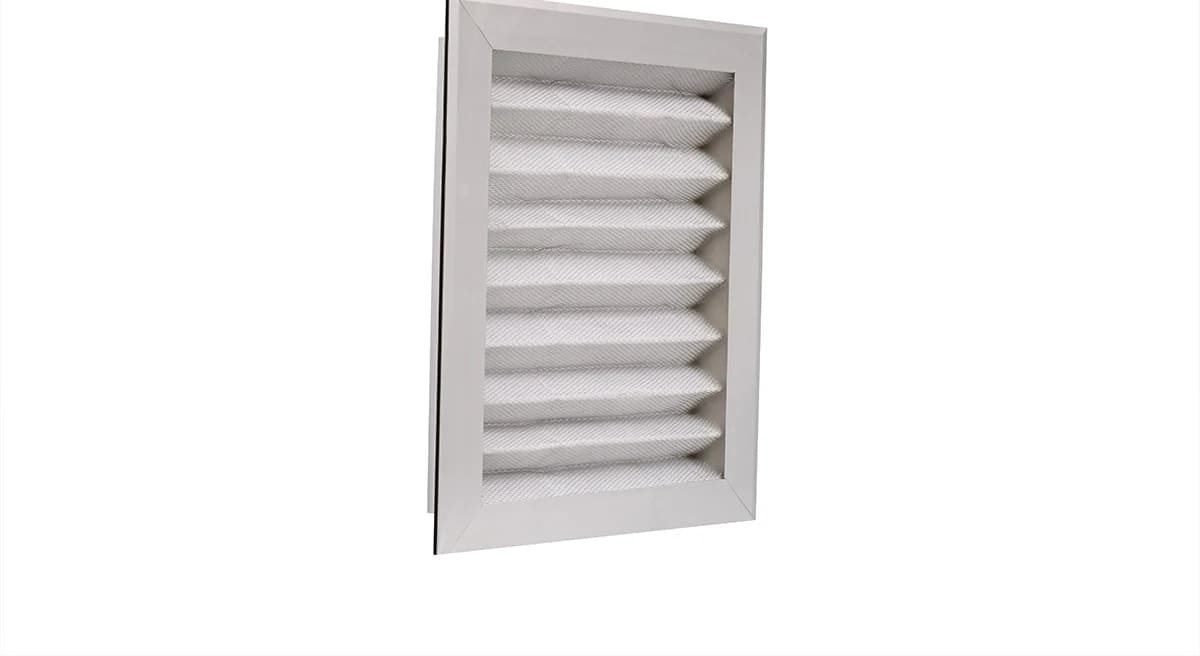

Pre FilterThe washable first stage that catches coarse dust so the expensive filters downstream last longer.
Fine FilterThe intermediate stage, F5 to F9, that catches what a pre filter misses and a HEPA should not have to.
Absolute HEPA FilterH13 and H14 grade final filtration, 99.97% at 0.3 micron, for ISO Class 5 operation.
Super HEPA FilterFinal filtration beyond standard HEPA, for research, pharmaceutical manufacturing and nanotechnology.

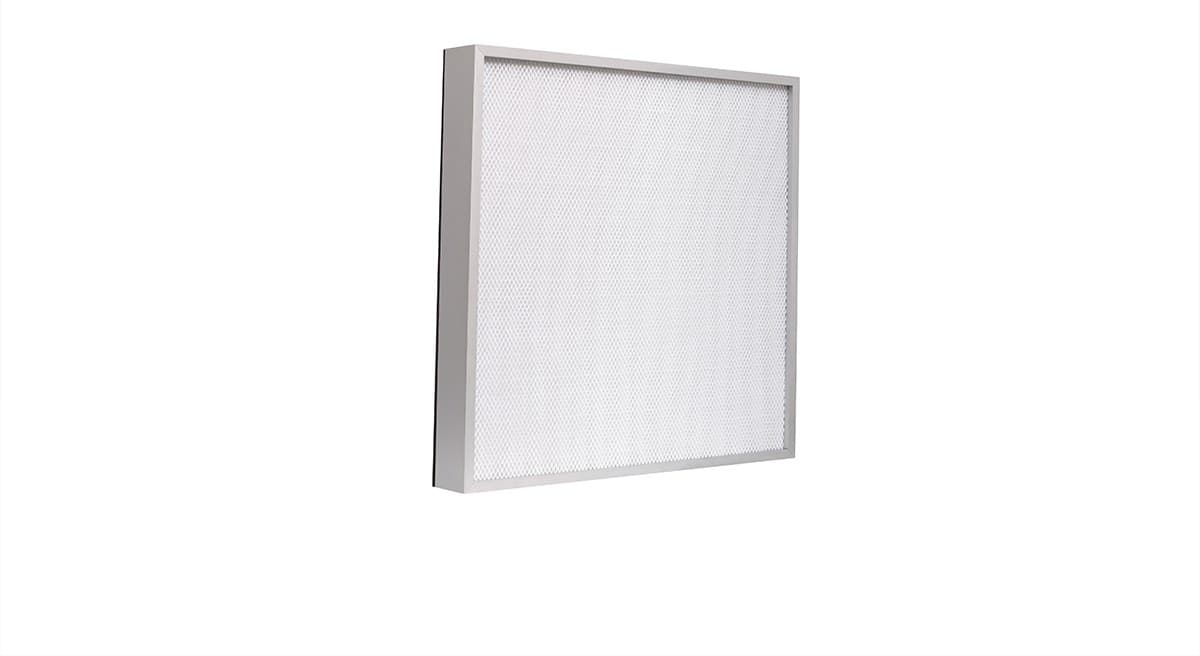

Mini Pleat HEPA Filter (Gasket Seal)A shallow 75 mm HEPA with closely packed pleats and an airtight gasket seal.

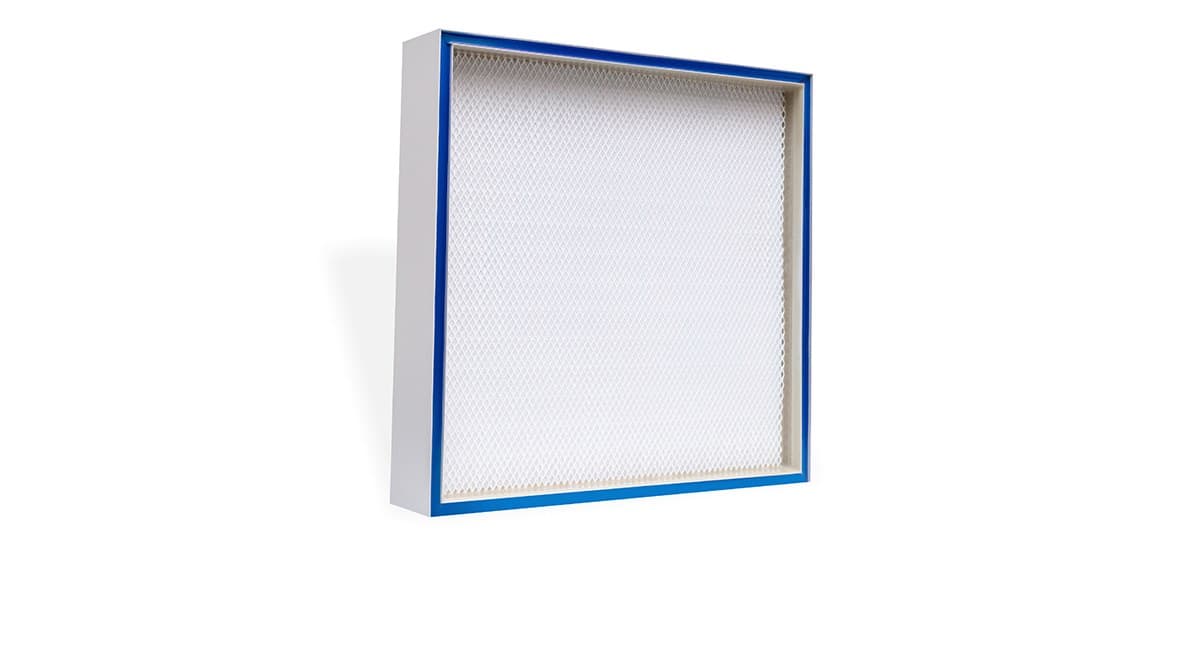

Mini Pleat HEPA Filter (Gel Seal)The gel seal version, which eliminates bypass leakage at the filter-to-housing joint.
Activated Carbon FilterAdsorption rather than filtration, for gaseous pollutants, odours and VOCs that a particulate filter passes straight through.

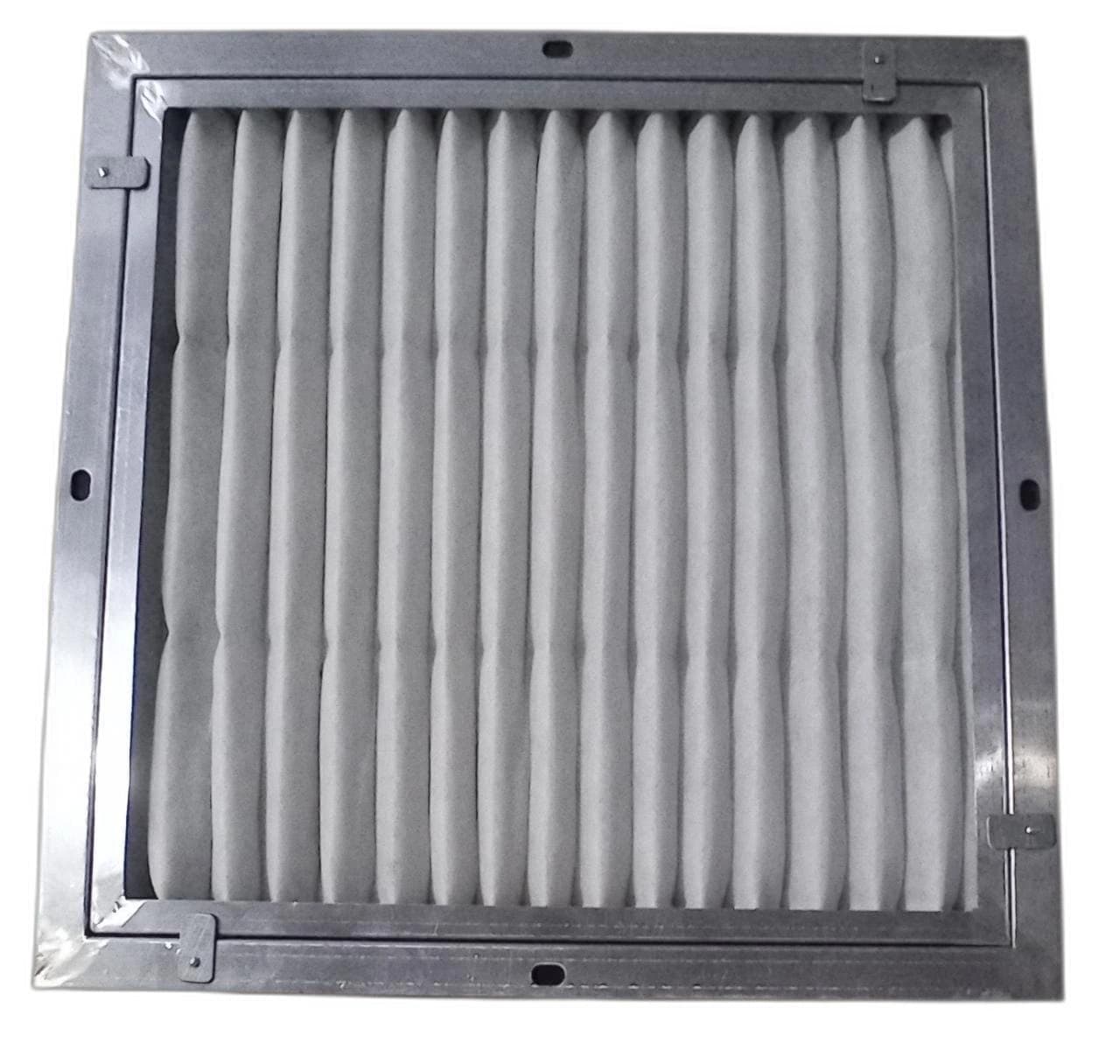

Combination FilterParticulate and gas phase filtration integrated into a single unit, where two housings will not fit.
Pocket FilterExtended surface area in pockets, which buys a longer service interval for the same face size.
Bag FilterThe same extended surface principle in bag form, for high dust load air streams.
Modular Operation Theatres
An operation theatre is a cleanroom with a patient in it. We build modular theatres around laminar airflow systems and high efficiency HEPA filters to reduce airborne contamination during surgery, using a panel system that can be reconfigured as a hospital's needs change.
About operation theatres
Discuss your requirement
Tell us what the room or the process has to achieve and our engineers will come back with a specification and a price.
- Useful to include
- For filters: size, quantity, required grade and frame material. For a project: the room layout and the ISO class it has to hold.
